Waveshare ESP32-C6 1.47inch Touch Display Development Board(without pinheader), 172x320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor

Marka: Waveshare
Gniazdo CPU: LGA 1700
Zgodne urządzenia: Płyty rozwojowe, komputery jednopłytkowe, systemy wbudowane
Technologia pamięci RAM: DDR
Kompatybilne procesory: ESP32-C6FH8
Platforma: Niestandardowe
Typ głównego złącza zasilania: 24 pin
Dostępne gniazda pamięci: 1
Producent: Waveshare

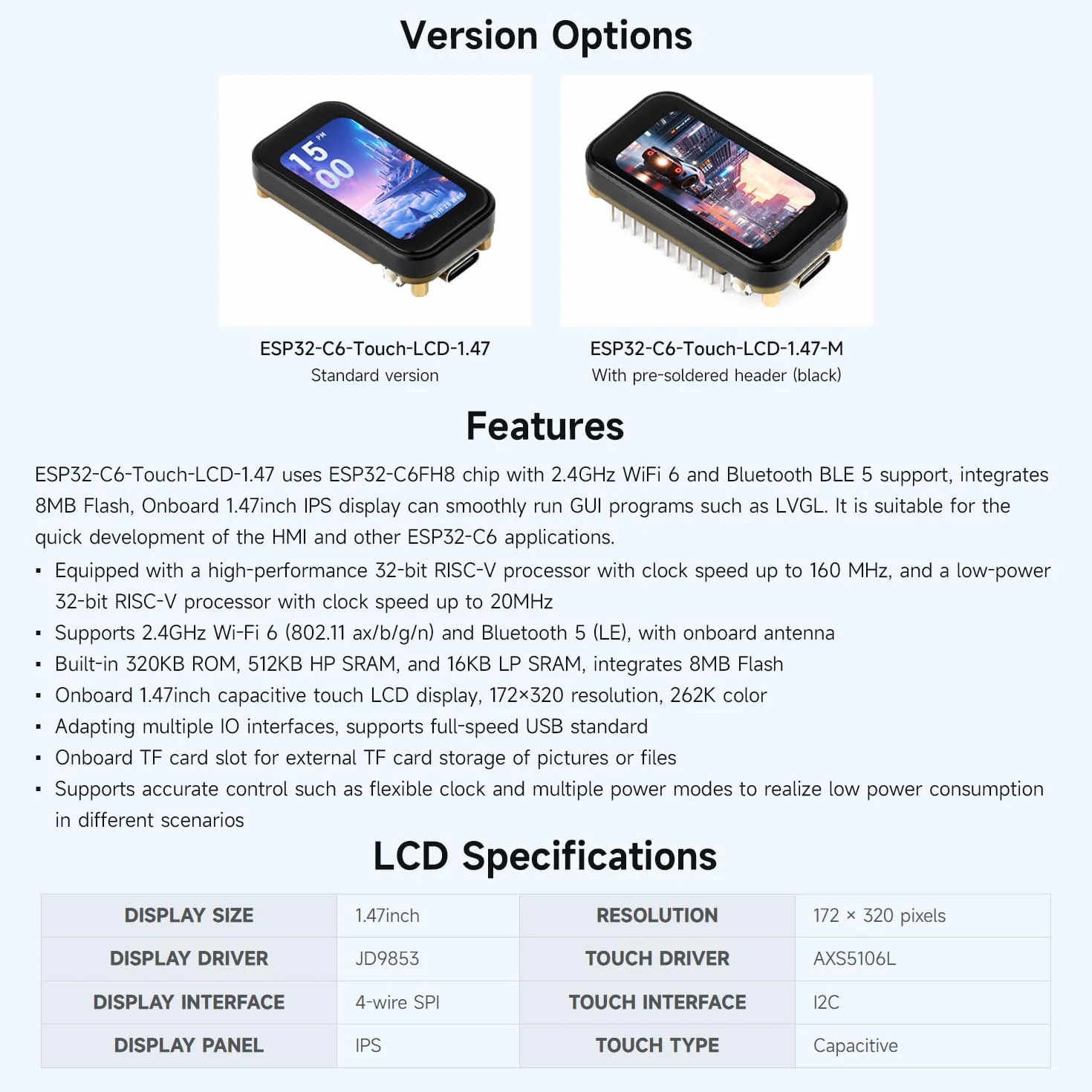

- ESP32-C6-Touch-LCD-1.47(Standard version, without pinheader) uses ESP32-C6FH8 chip with 2.4GHz WiFi 6 and BT BLE 5 support, integrates 8MB Flash, Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz

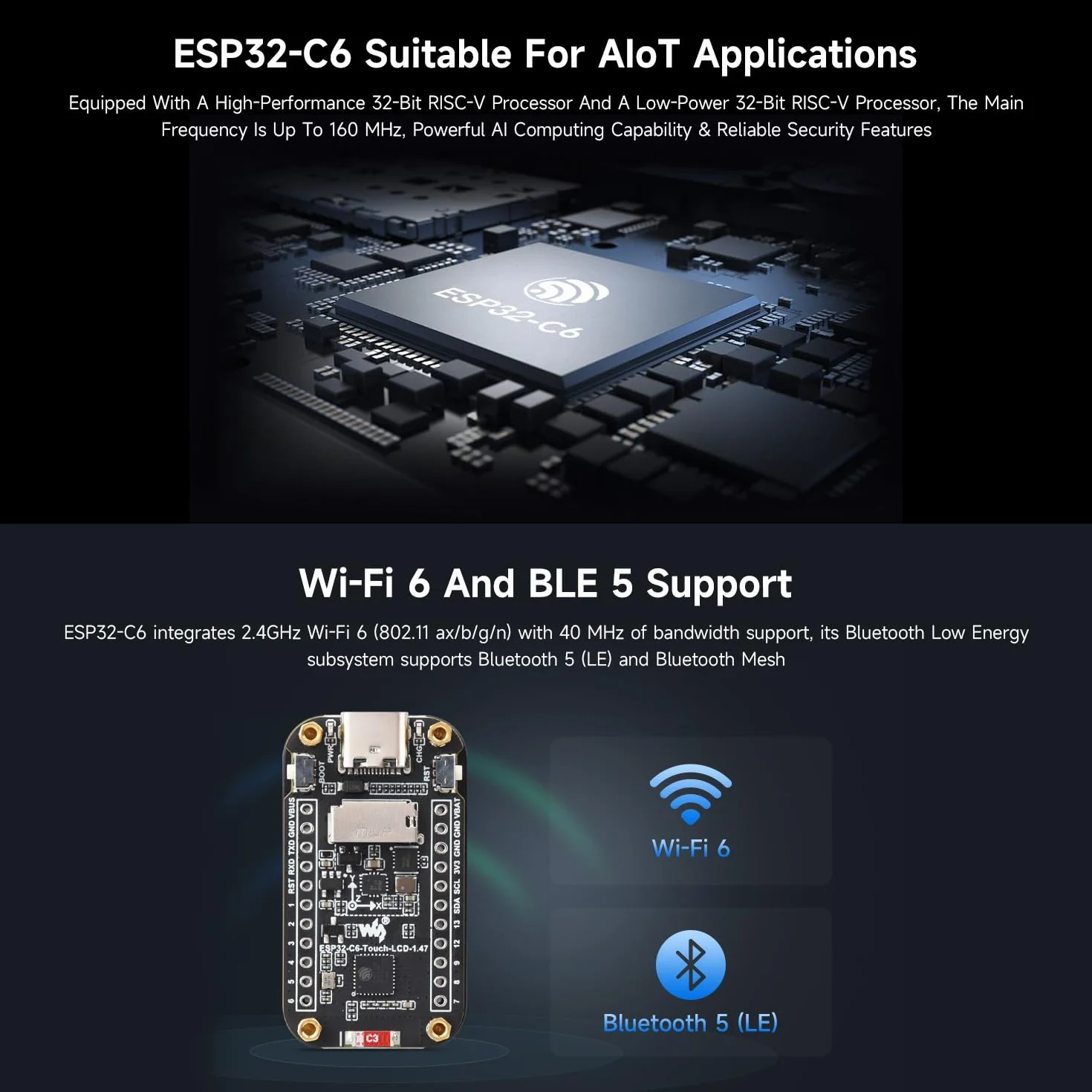

- Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and BT 5 (LE), with onboard antenna. Built-in 320KB ROM, 512KB HP S-RAM, and 16KB LP S-RAM, integrates 8MB Flash

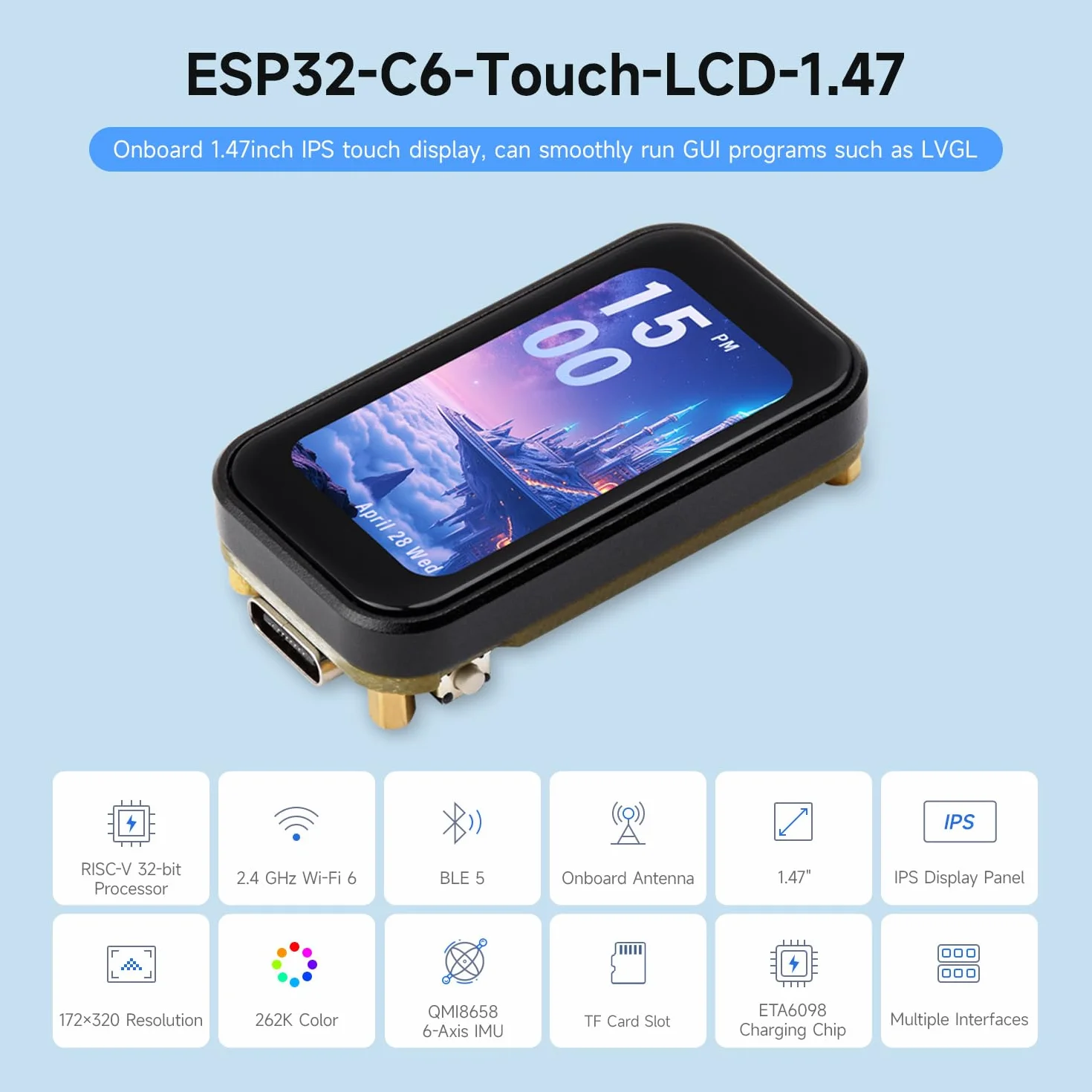

- Onboard 1.47inch capacitive touch LCD display, 172x320 resolution, 262K color. Adapting multiple IO interfaces, supports full-speed USB standard
- Onboard TF card slot for external TF card storage of pictures or files. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
