Waveshare PCIe to M.2 Adapter with PoE Function (C), Compatible with Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing

Marka: Waveshare
Interfejs sprzętowy: PCI Express 4.0
Producent: Waveshare

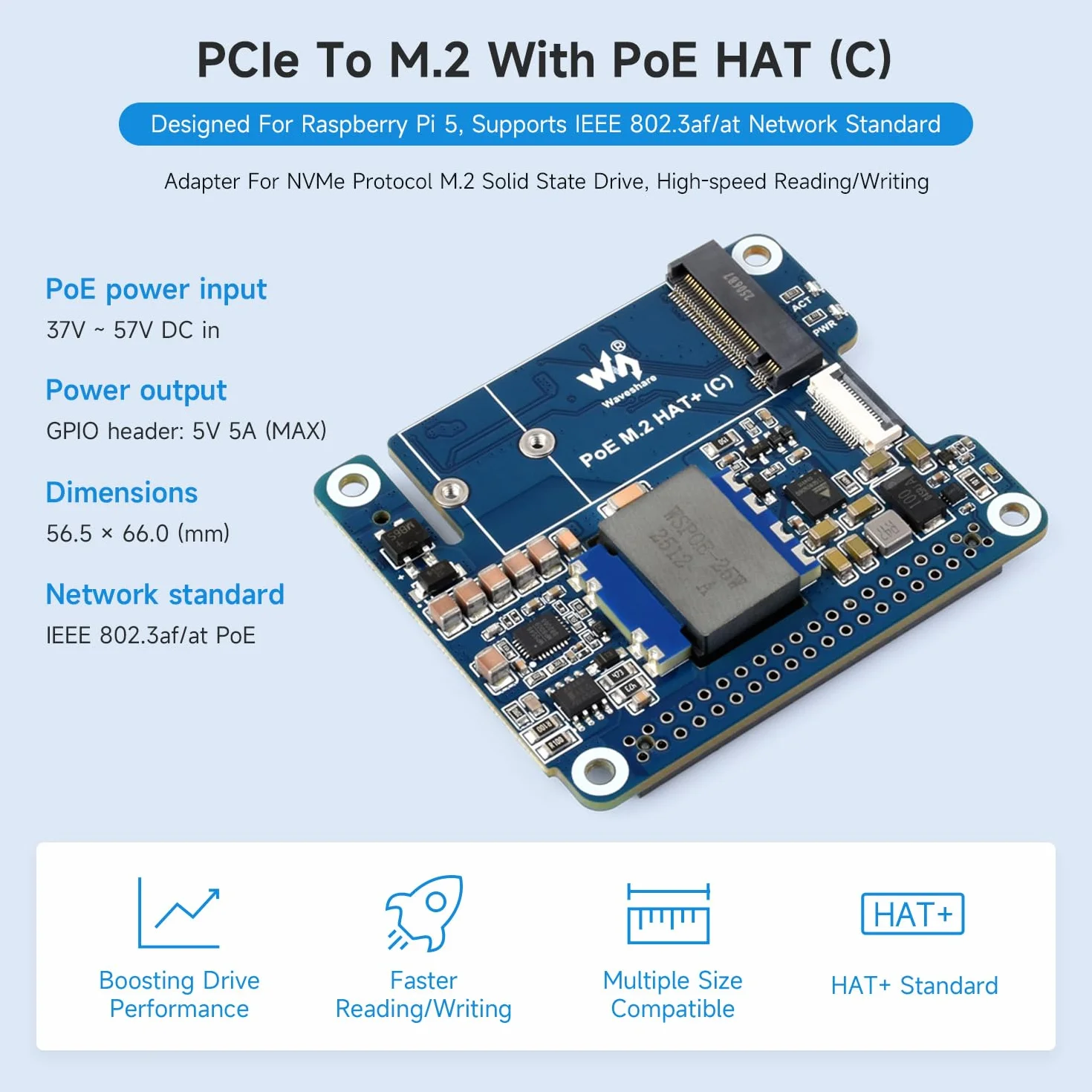

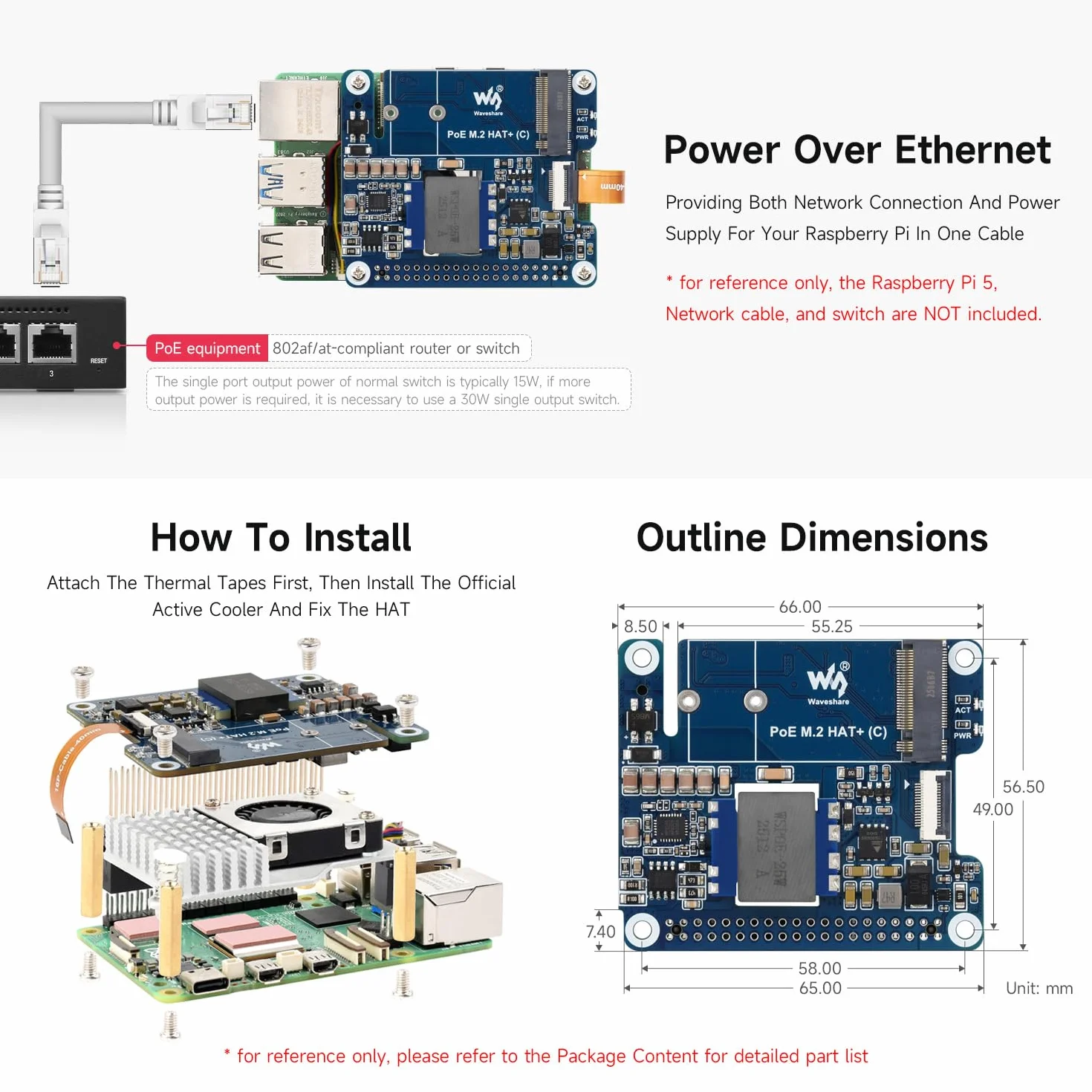

- Power over Ethernet (PoE) Support: The POE M.2 HAT+ provides Power over Ethernet functionality, Power and data transmission through a single Ethernet cable. It supports IEEE 802.3af/at standards, offering a convenient and efficient solution for powering your Raspberry Pi without the need for an additional power supply.

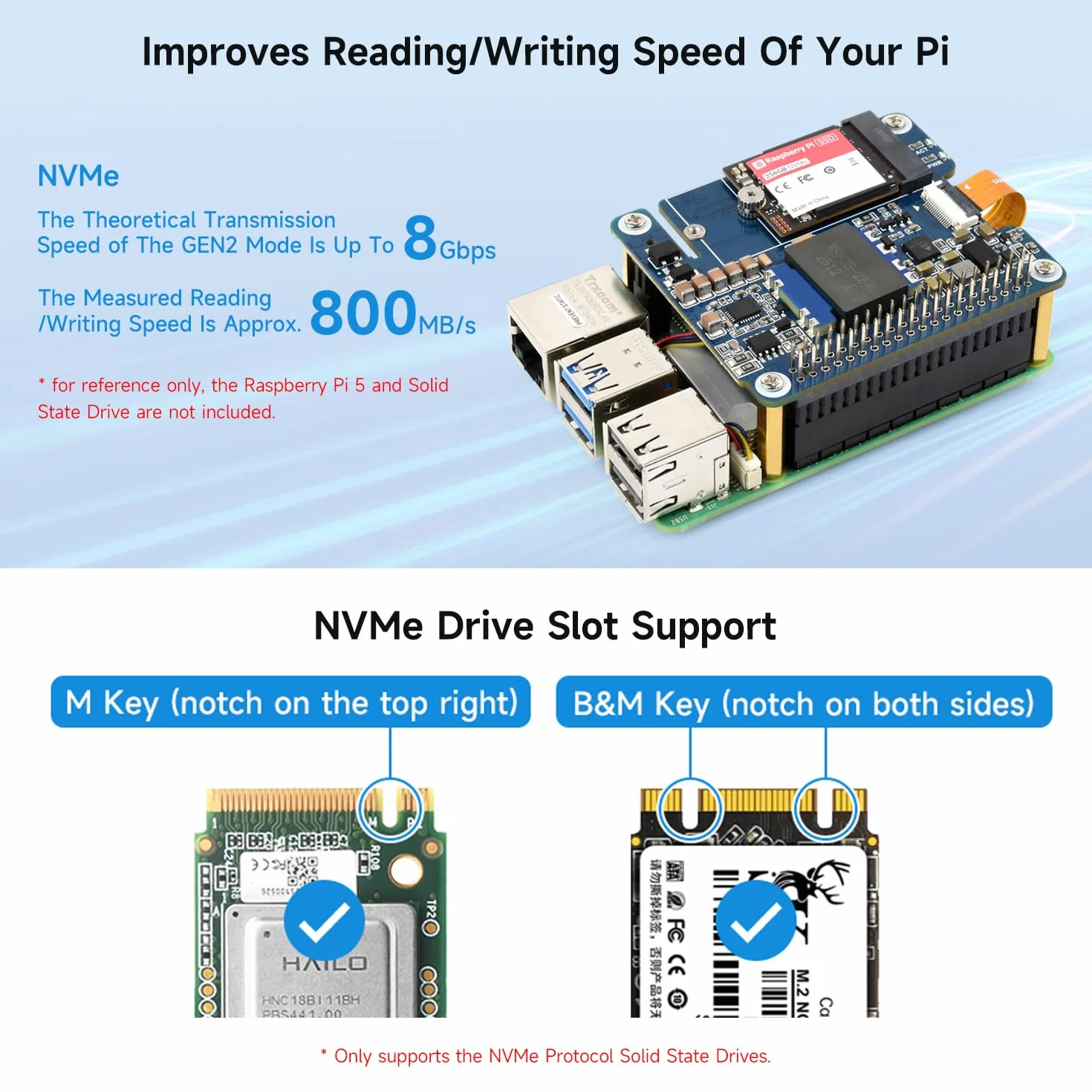

- M.2 NVMe SS D Expansion: This HAT+ adds the ability to expand your Raspberry Pi's storage with M.2 NVMe SS Ds. It supports M.2 2230 and 2242 form factors, offering fast data transfer speeds for applications that require high-performance storage. This makes it ideal for users looking to add significant storage to their projects.
- Cooling and Heat Dissipation: The HAT+ is designed with thermal efficiency in mind. It features a metal heatsink and an optional active cooling fan to help regulate the temperature of both the Raspberry Pi and the M.2 SS D, ensuring stable operation even under heavy loads or long hours of use.
- Easy Installation and Compatibility: This HAT+ is simple to install and directly connects to the Raspberry Pi via the PCIe interface. It is compatible with Raspberry Pi models with a 40-pin header and is designed for easy integration into your existing Raspberry Pi projects, providing both power and storage expansion in one solution.

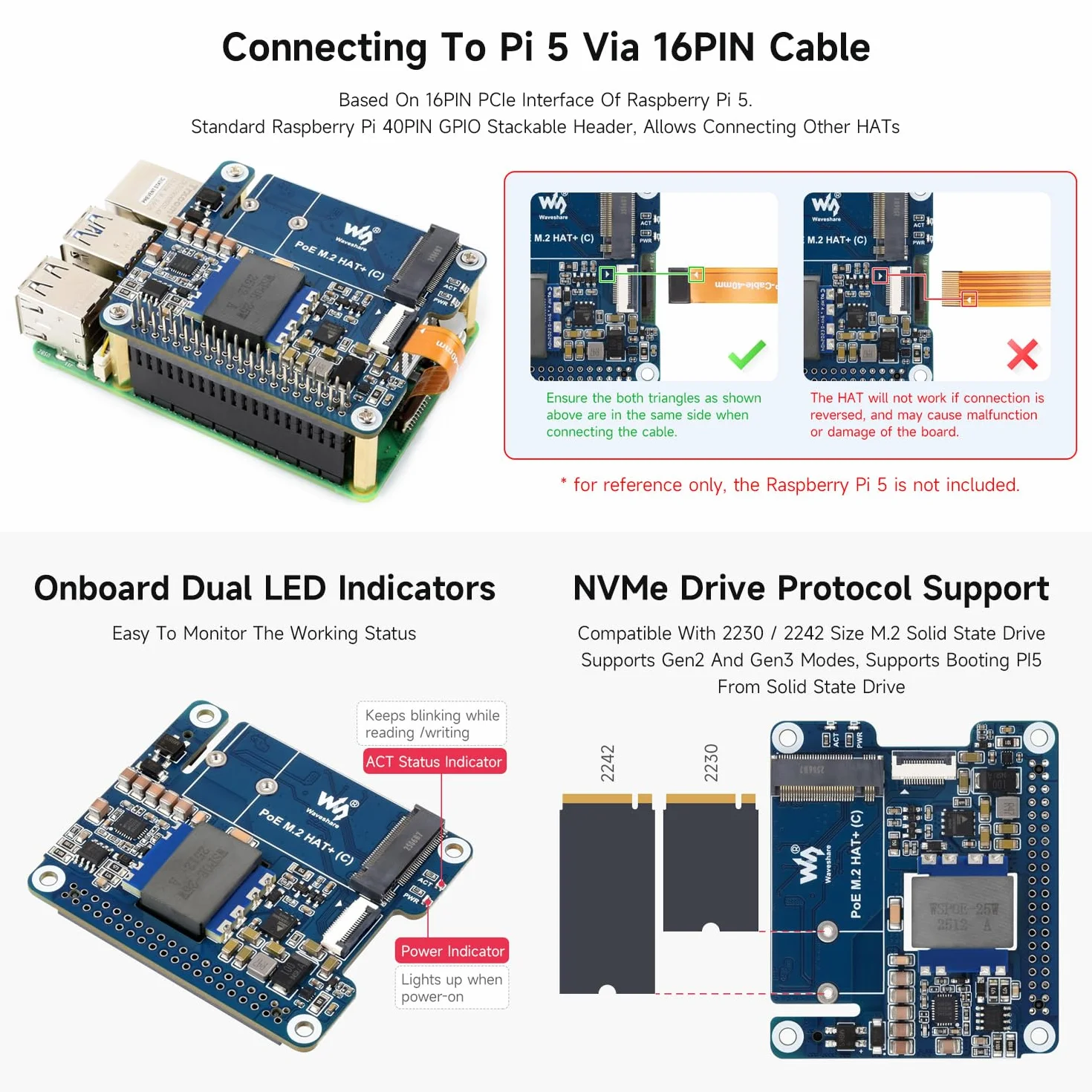

- Clear LED Indicators: The HAT+ includes two LED indicators for clear operational status: a power (PWR) LED that indicates when the device is powered on, and an activity (ACT) LED that blinks during data read/write operations. These indicators help users monitor the performance of the device with ease.
