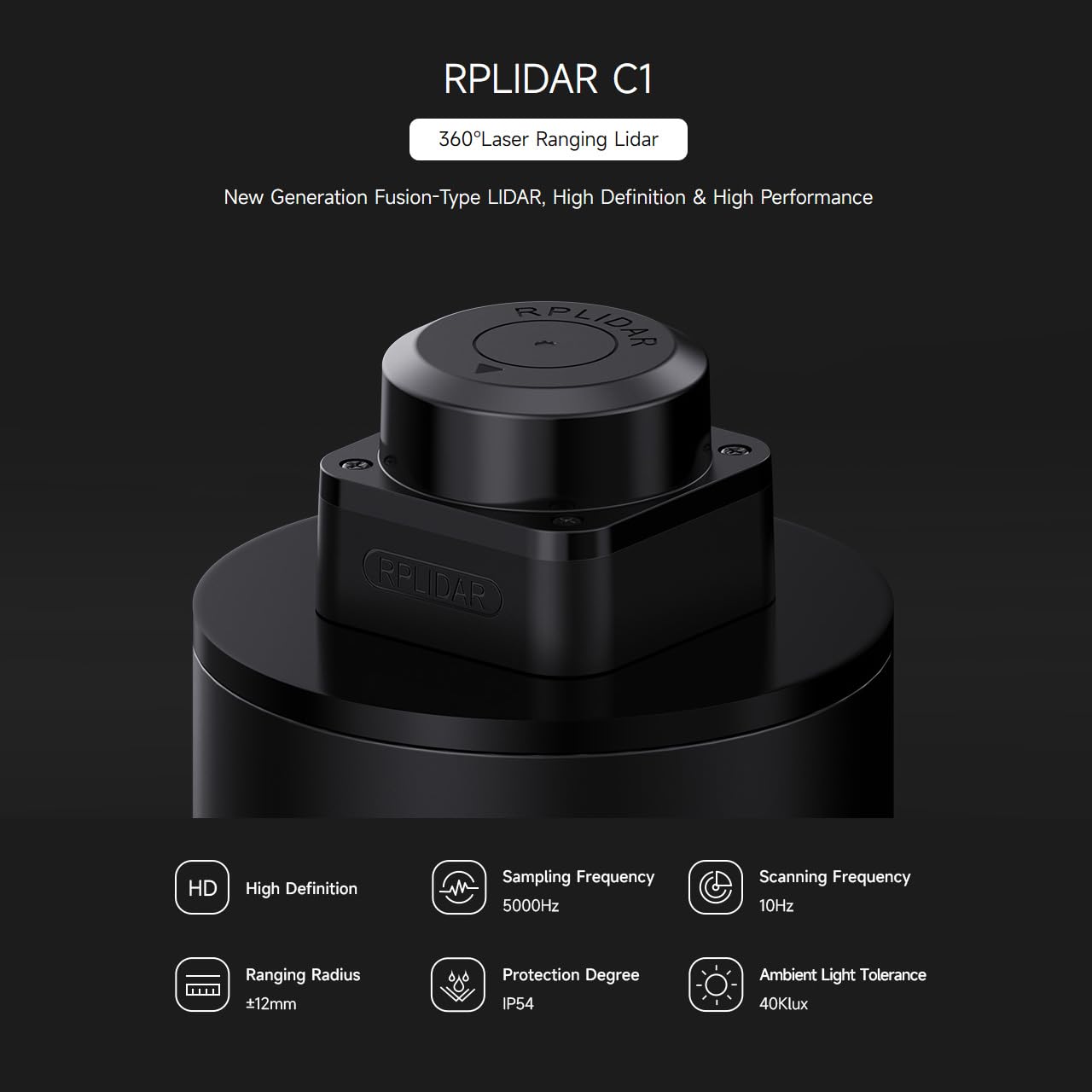

Waveshare Slamtec RPLIDAR C1 Laser Ranging Sensor, 360° Omnidirectional Lidar, Millimeter-Level High Definition, Anti-Interference and Anti-Adhesion, Compact and Easy to Integrate

Marka: Waveshare
Technologia pamięci RAM: LPDDR
Nazwa modelu: RPLIDAR C1
Typ głównego złącza zasilania: 24 pin
Interfejs karty graficznej: PCI Express
Liczba portów: 2
Łączna liczba portów PCI E: 1
Producent: Waveshare

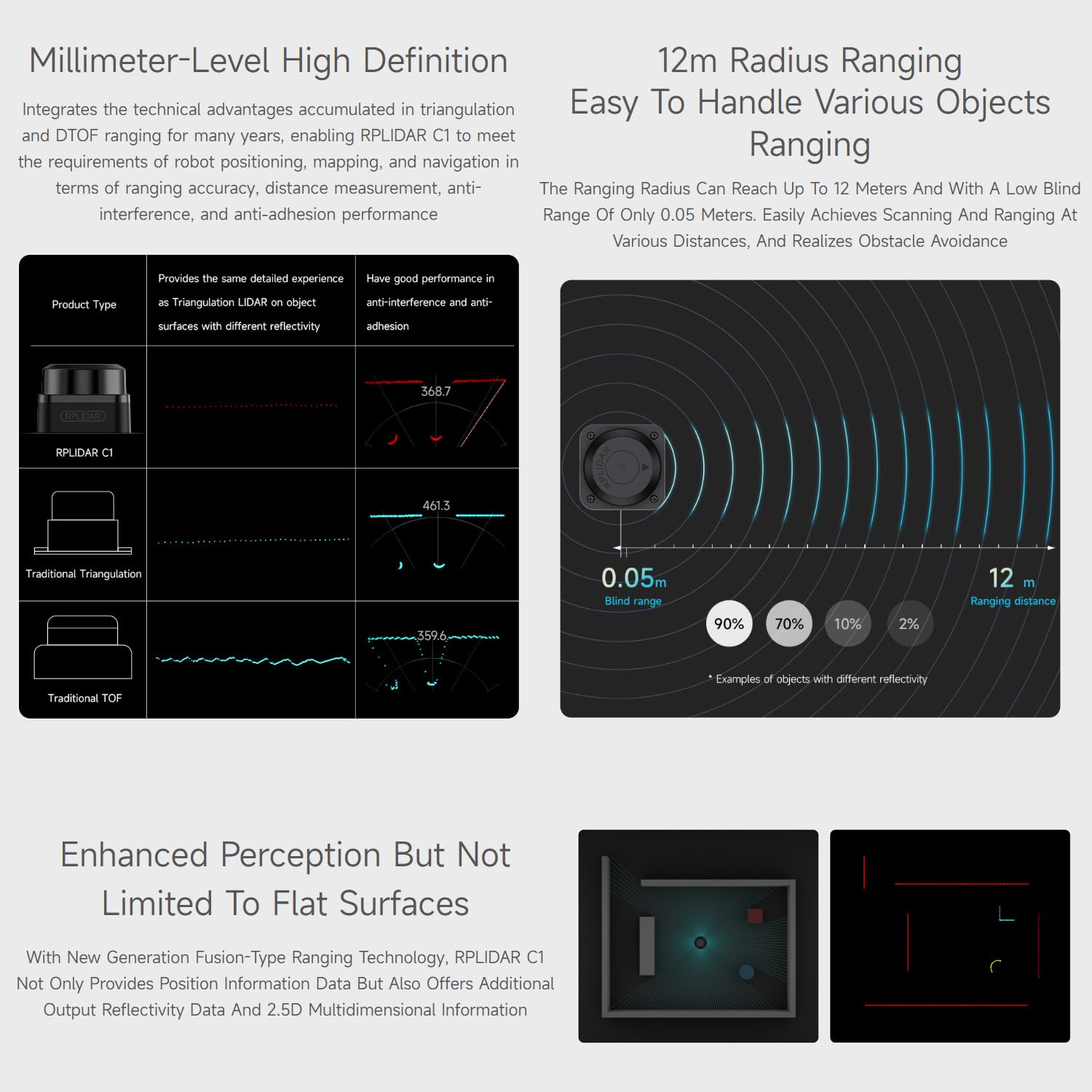

- [Millimeter-Level High Definition]Integrates the technical advantages accumulated in triangulation and DTOF ranging for many years, enabling RPLIDAR C1 to meet the requirements of robot positioning, mapping, and navigation in terms of ranging accuracy, distance measurement, anti-interference, and anti-adhesion performance
- [Enhanced Perception But Not Limited To Flat Surfaces]With New Generation Fusion-Type Ranging Technology, RPLIDAR C1 Not Only Provides Position Information Data But Also Offers Additional Output Reflectivity Data And 2.5D Multidimensional Information
- [12m Radius Ranging, Easy To Handle Various Objects Ranging]The Ranging Radius Can Reach Up To 12 Meters And With A Low Blind Range Of Only 0.05 Meters. Easily Achieves Scanning And Ranging At Various Distances, And Realizes Obstacle Avoidance

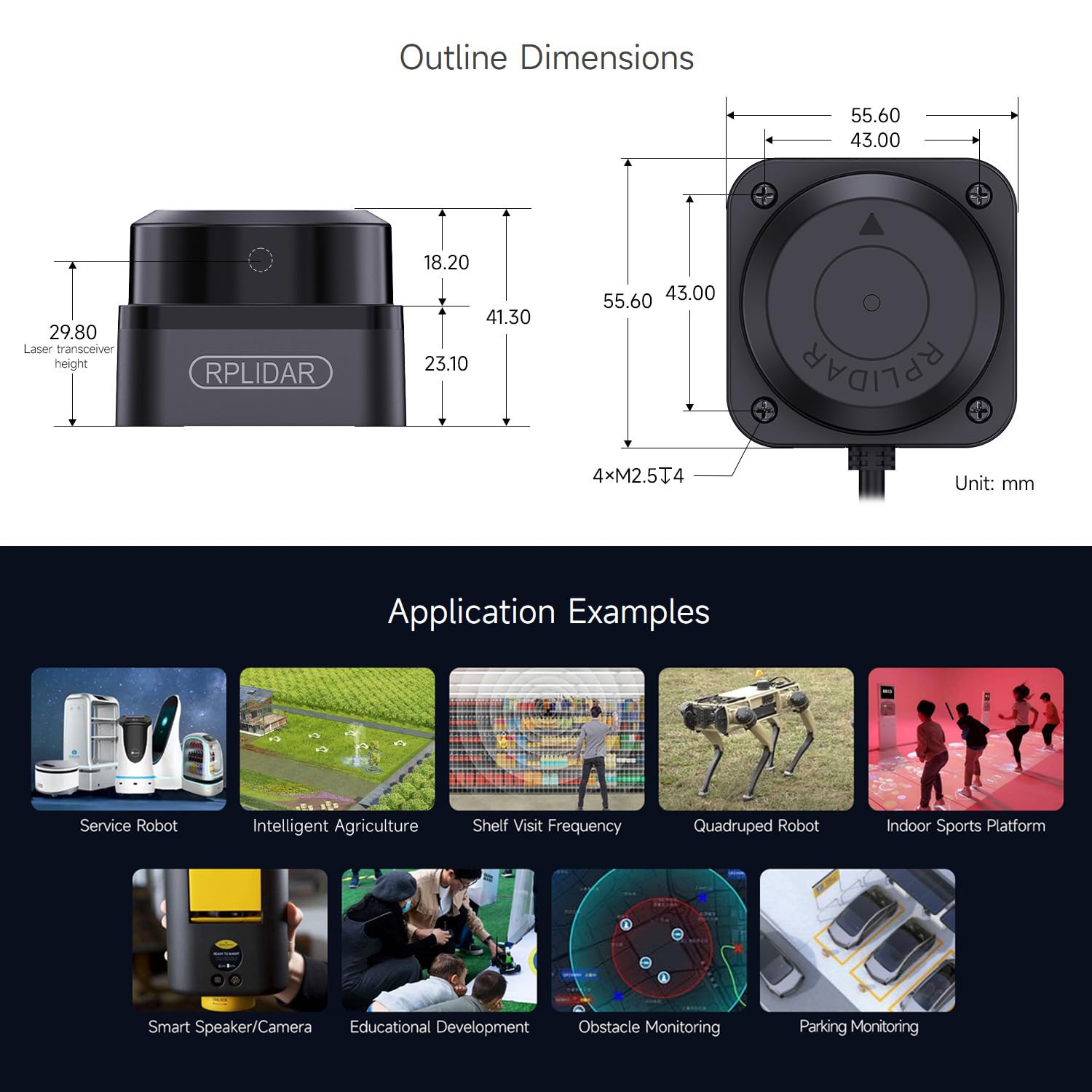

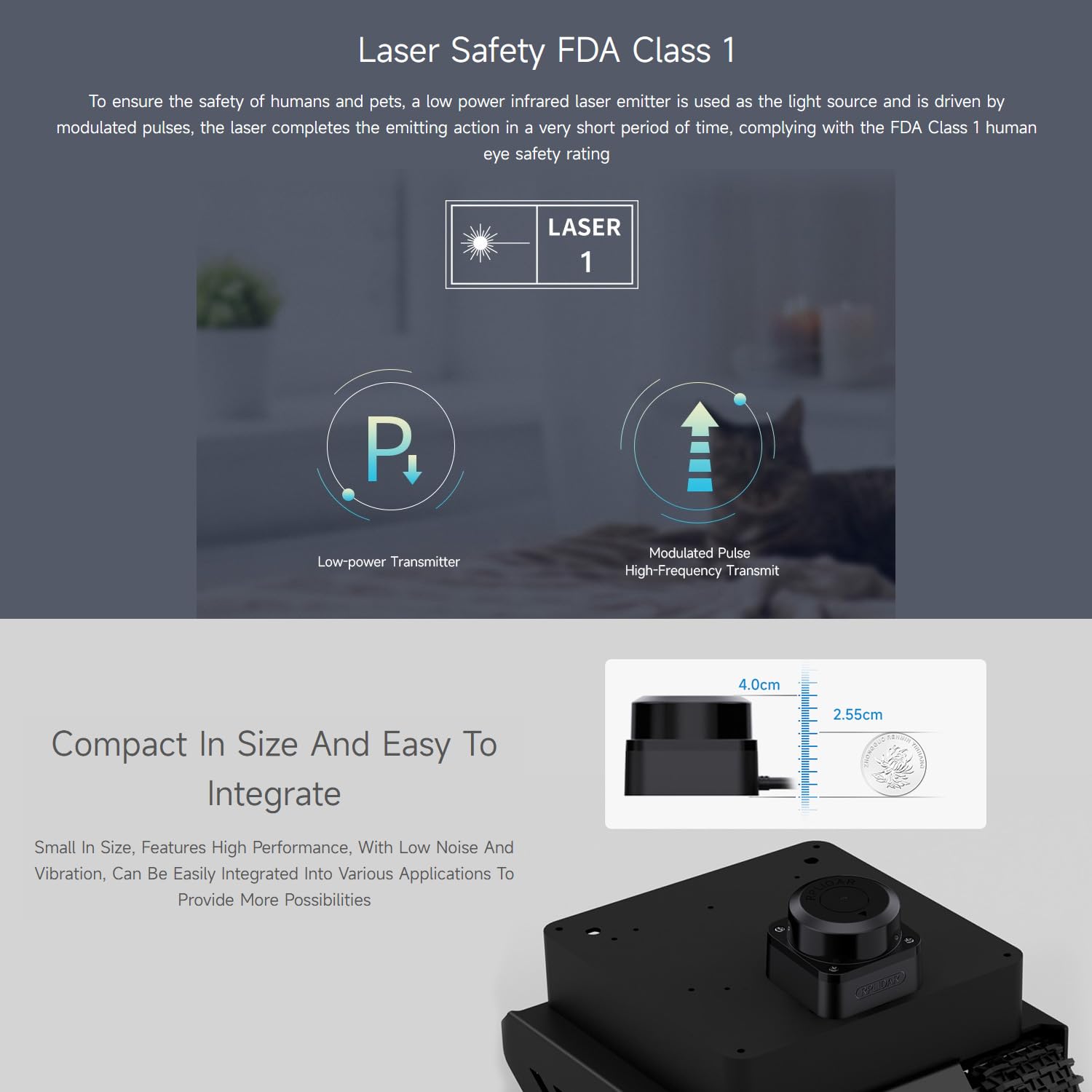

- [Compact In Size And Easy To Integrate]Small In Size, Features High Performance, With Low Noise And Vibration, Can Be Easily Integrated Into Various Applications To Provide More Possibilities. Suitable for Service Robot, Drone, Shelf Visit Frequency, Quadruped Robot, Indoor Sports Platform, Smart Speaker/Camera, Educational Development, Obstacle Monitoring, Parking Monitoring
- [Rich Technical Documentation Support]Can provide Datasheet, User Manual, Application Manual, Protocol Specification. [SDK & Demo Support]Can Provide SDK Development Packages That Can Run On Different Platforms, Supports ROS And ROS2 Operating Systems, Helping Users To Develop And Integrate Across Various Operating Systems And Architectures
