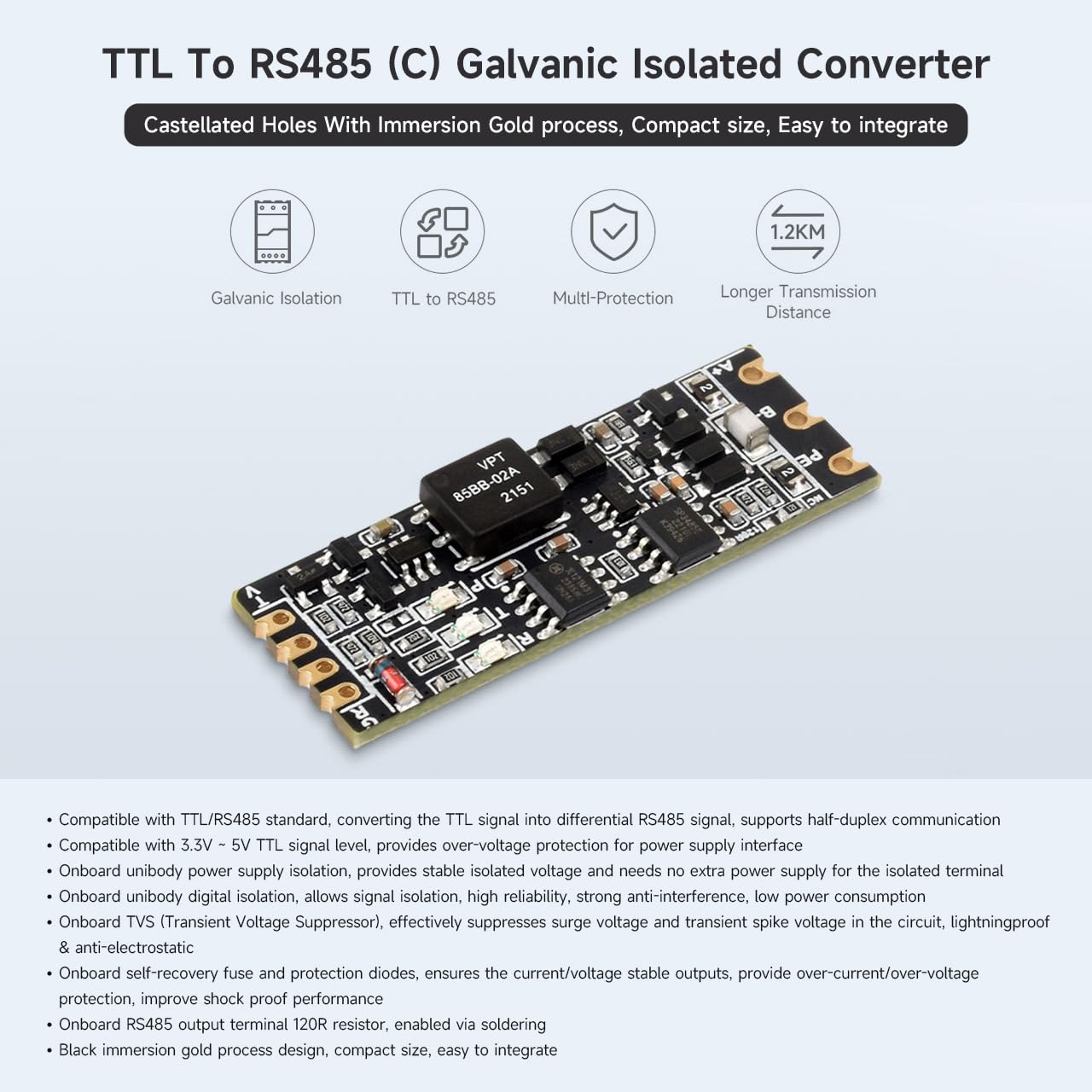

Waveshare TTL To RS485 (C) Galvanic Isolated Converter, Half-Duplex Communication, Lightningproof & Anti-Surge, Multi-Isolation Protection

Zgodne urządzenia: Urządzenia TTL, urządzenia RS485, mikrokontrolery, systemy wbudowane
Szczególne zastosowania produktu: Sterowanie przemysłowe, sieci czujników, systemy komunikacyjne
Typ złącza: RS485, TTL
Marka: Waveshare
Napięcie wejściowe: 5 Wolty
Prąd znamionowy: 10 Ampery
Typ wtyczki zasilania: Brak wtyczki
Liczba jednostek: 1.0 sztuk
Moc znamionowa: 50 Watts
Producent: Waveshare

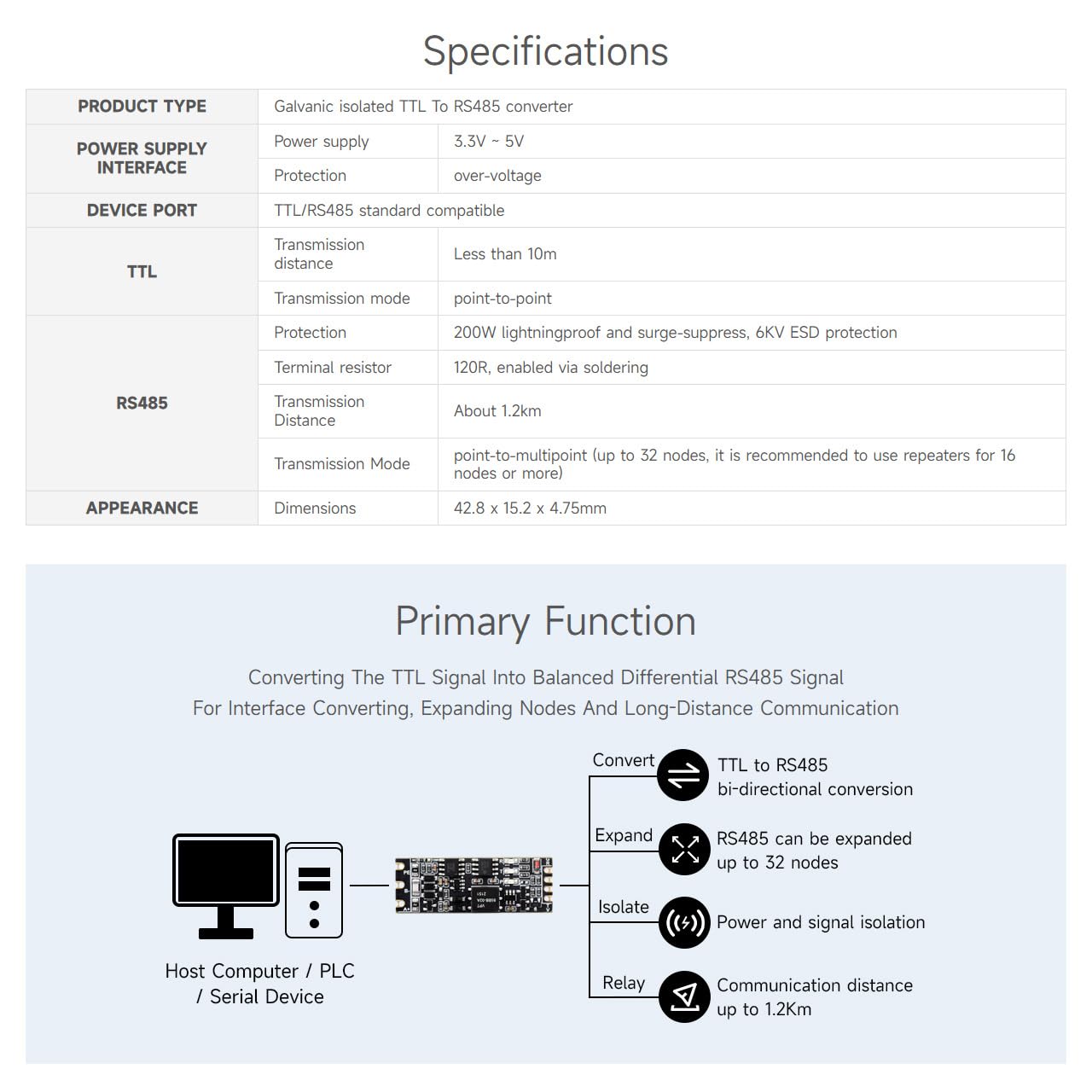

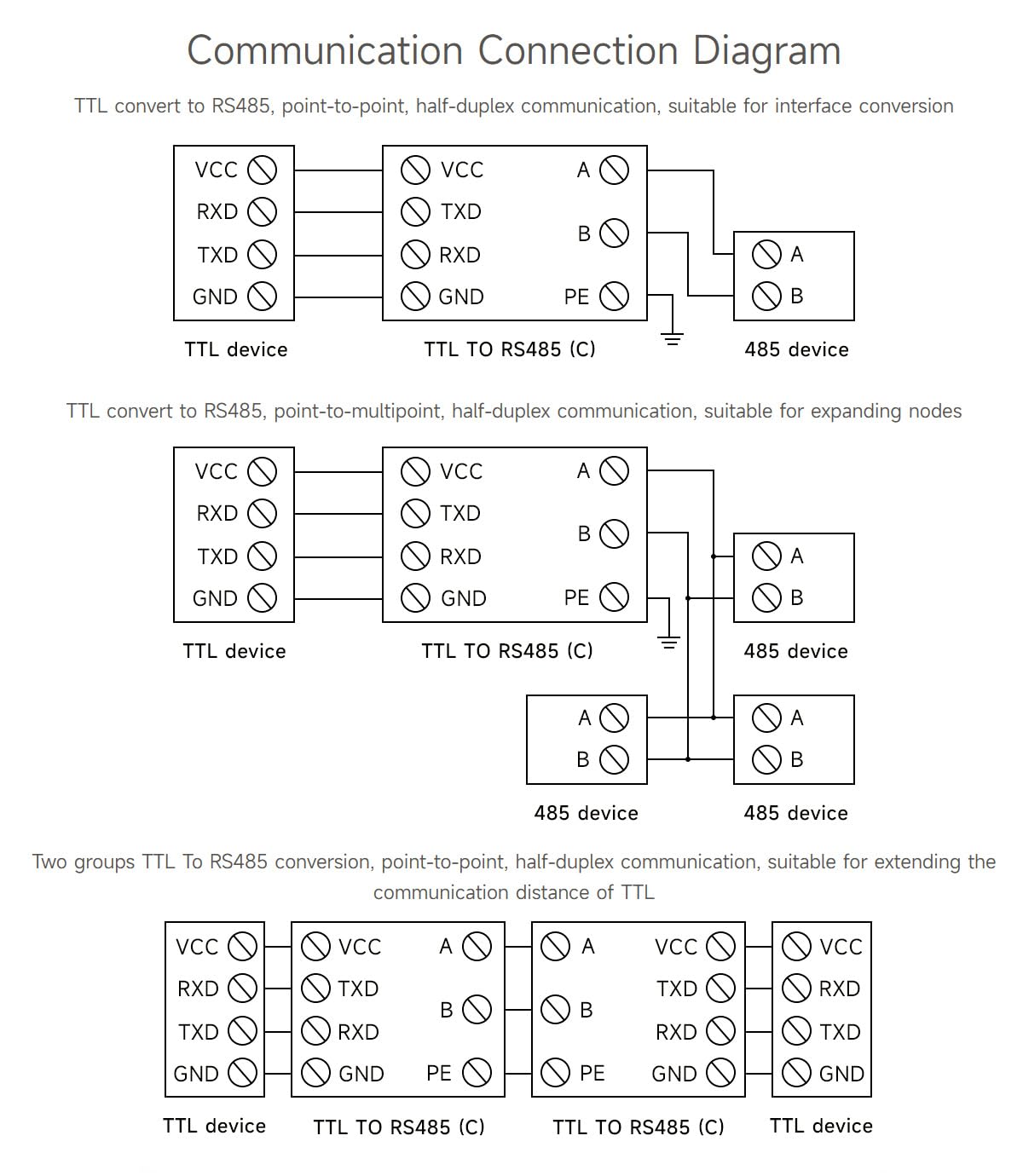

- Compatible with TTL/RS485 standard, converting the TTL signal into differential RS485 signal, supports half-duplex communication
- Compatible with 3.3V ~ 5V TTL signal level, provides over-voltage protection for power supply interface
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

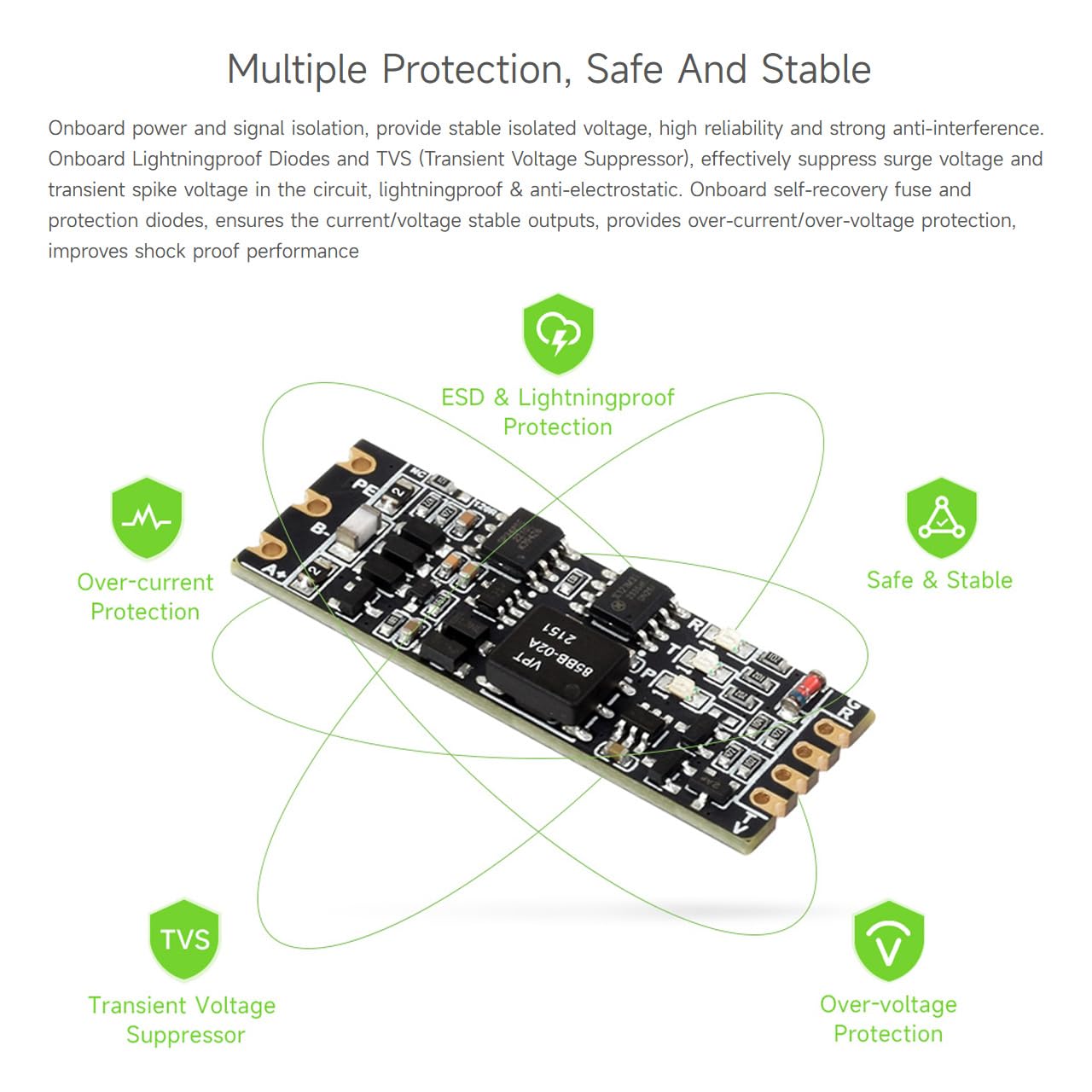

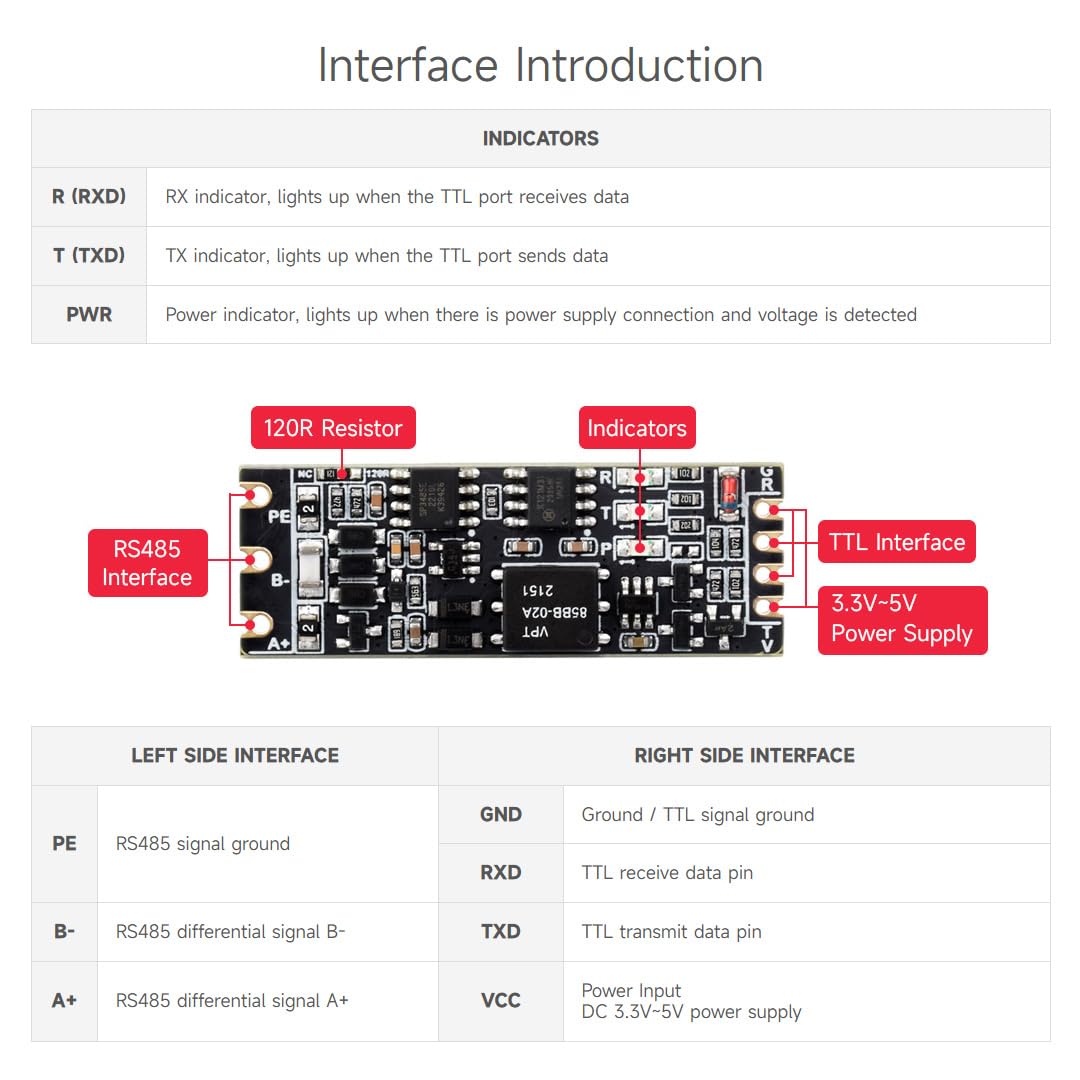

- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard RS485 output terminal 120R resistor, enabled via soldering

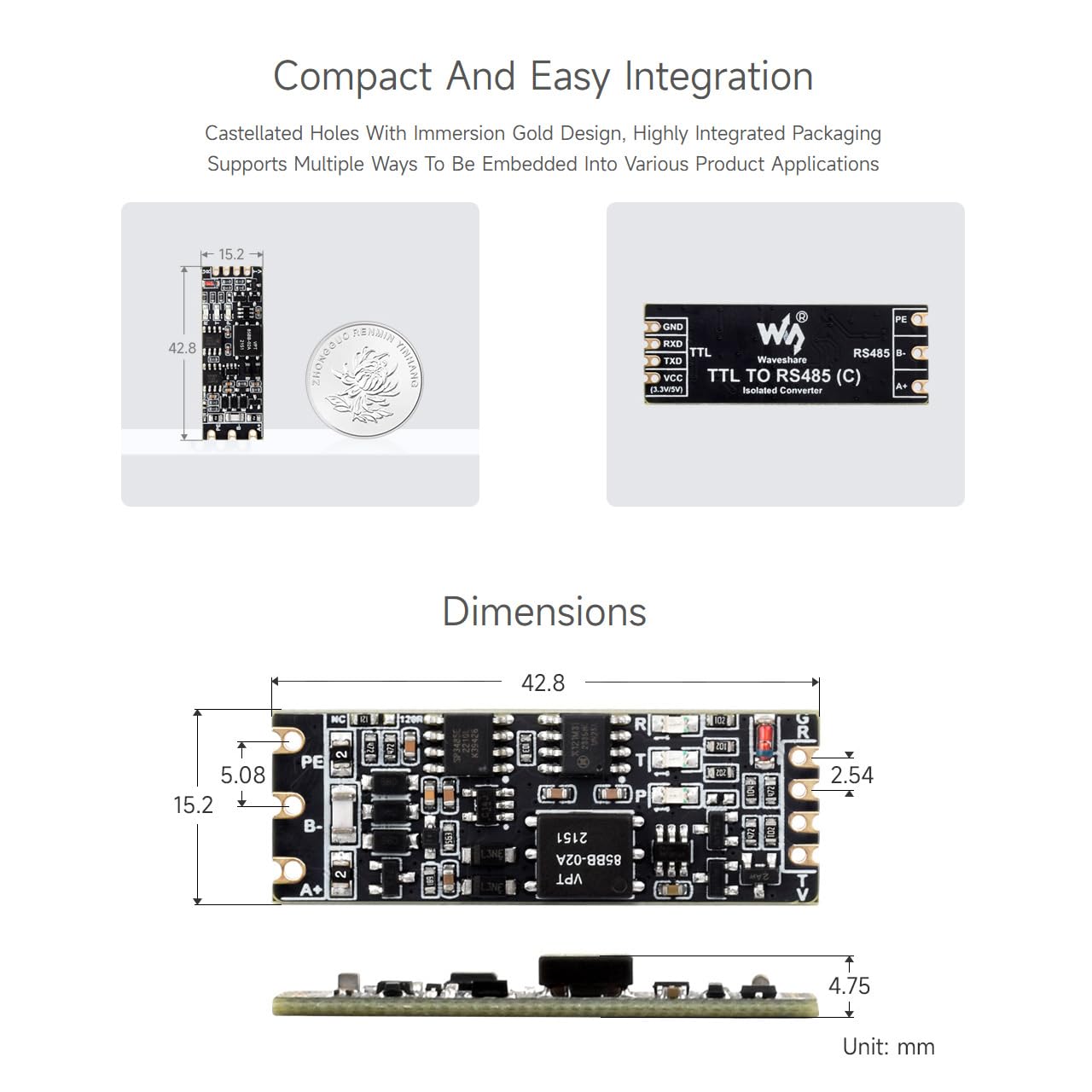

- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance. Black immersion gold process design, compact size, easy to integrate
